Startseite /Produkte/Maschine zur Spulenwicklung/Automatic Textile Field Cone Yarn Spool Winding Machine

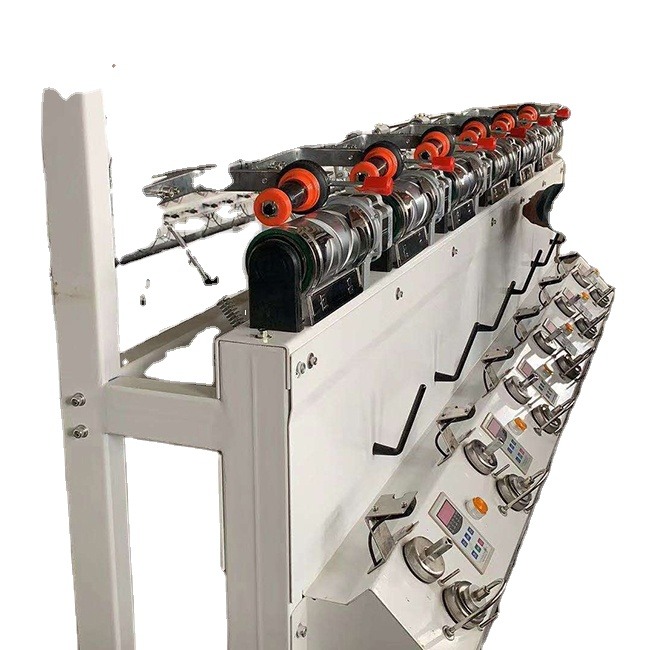

Automatic Textile Field Cone Yarn Spool Winding Machine

1.0 set
MOQ
Automatic Textile Field Cone Yarn Spool Winding Machine
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Applicable Industries: textile machinery
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Ordinary Product
Warranty of core components: 3 months
Core Components: Motor
Condition: New
Application: textile field
Automatic Grade: Automatic
Production Capacity: 1000-30000m
Voltage: 380V
Power: 0.09KW/spindle
Dimension(L*W*H): Each spindle 205*1000*1500mm
Weight: 200 KG
Warranty: 1 YEAR
Product name: auto cone yarn bobbin winding machine
Winding form: Super type metal tank cylinder
Winding shape: Flat tube or cone tube
Wind motion path: 210mm
Winding bobbin: 0° 3° 30' 4°20' 5° 57
Power supply: Three-phase 380V,50/60 hz
Transmission: Single spindle independent ac motor drive
Power Consumption: 0.09 kw/ingot
Package Diameter: 250 mm
Yam speed: 400-900 m/min
Grundinformation
Zahlung und Versand AGB
Packaging Details: Standard packing:auto cone yarn bobbin winding machine
Supply Ability: 100 Set/Sets per Month auto cone yarn bobbin winding machine
Produkt-Beschreibung
Product Description
Specification
Product name
auto cone yarn bobbin winding machine
Winding shape
Flat tube or cone drun
Wind motion path
210mm
Winding bobbin
0° 3° 30’ 4°20’ 5° 57
Power supply
Three-phase 380 v 50/60 hz
Layout
Double-sided,1-10section (section 12)
Transmission
Single spindle independent ac motor drive
Power Consumption
0.09 kw/ingot
Package Diameter
250 mm
Yam speed
400-900 - m/min
Electronic wobble frequency anti-patterning function
Inverter control
Length counting device
optional
Yarn tension and waxer adjusting device
Each spindle is provided with rotary self-cleaning tensioner and waxing
Yarn break control device
Electronic yarn breakage stops
Speed regulation
Frequency control of motor speed
Blows the inflow cleaner
optional
Dimensions
Each spindle 205*1000*1500mm
